ENVIRO SENSORS
Enviro ... because is good to know
Air Quality Monitor
Each lightweight instrument is designed to simultaneously measure particulate, gas and weather data all in real-time! As an Internet of Things (IoT) solution, these hyperlocal, cloud-based monitors offer data interfacing using WiFi/cellular and comes standard with an SD memory card for duplicate date storage. While specifically designed for outdoor environmental monitoring, Air Quality Monitors can also be utilized inside buildings, homes and manufacturing facilities to measure indoor air quality. Environmental Air Quality Monitors are compatible with our cloud-based software solution that allows customers to track in real-time air quality information, as well as provide integration with customers own platform, third-party software and analytical tools thanks to API Data Services.
Sensor of Relative Humidity and Temperature
Sensor for measuring humidity and temperature in outdoor areas. In delivery condition, the sensor is designed for measuring temperature and relative humidity. Alternatively the output can be set to absolute humidity, enthalpy or dew point. A mounting base for mounting on a level surface and fixing material are included in delivery.
Sensor for Dust particles
Sensor D-01 Particulate Matter (PM) sensor is a technological breakthrough
in optical PM sensors. Its measurement principle is based on laser
scattering and makes use of Sensirion’s innovative contaminationresistance
technology. This technology, together with high-quality and long-lasting
components, enables accurate measurements from its first operation and
throughout its lifetime of more than eight years. In addition, advanced
algorithms provide superior accuracy for different PM types and higher resolution particle size binning, opening up new possibilities for the
detection of different sorts of environmental dust and other particles. With
dimensions of only 41 x 41 x 12 mm3, it is also the perfect solution for
applications where size is of paramount importance, such as wall-mounted
or compact air quality devices.
Sensor CO2&VOC
Duct air quality sensor for detection of CO2, VOC, optional temperature
and humidity. With a mix output, a mixture of CO2 and VOC signals can be realized. The mixing ratio can be configured with the USE app or via modbus. Designed for duct mounted applications with up to 2 configurable 0 - 10 V

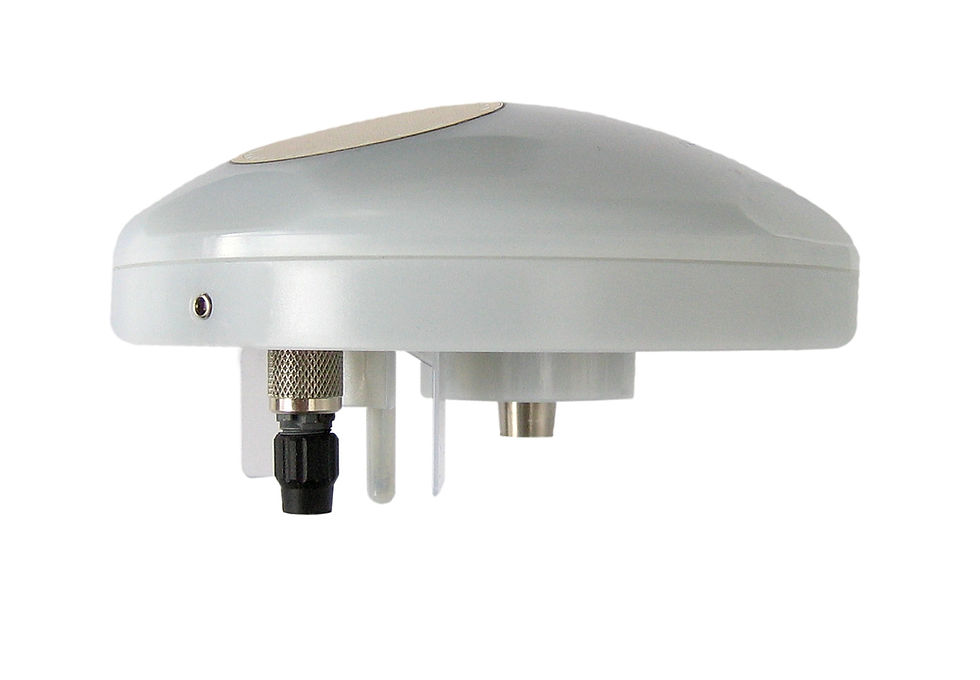

Meteostation sensor
The interface for the instrument is digital, and consists of an RS485 interface. Together with the IDbased communication the interface facilitates the operation of the weather station in a bus.
The instrument has a GPS receiver. It serves for the determination of position and time. The sun position is calculated herefrom additionally.
Environmental Module
The module is designed to measure environmental conditions in an urban area. The device is composed of 10 independent sensors that measure air quality, temperature, humidity, pressure, light, noise and dust particles. The gas sensors measure carbon monoxide, sulfur dioxide, ozone and nitrogen dioxide in the air. The selection of these gases was selected according to the Air Protection Act (directive 2008/50/EC), which describes concentration limits for the gases in the air. The set of gases is variable in the range of available electronics-compatible sensor elements.
